Steam Generator aqvapos MM5

The aqvapos MM5 provides up to 112 kg/h of saturated steam with an operating pressure between 0 and 12 bar and a standard control accuracy of +0,02 bar or +- 0,02 bar in the “High Precision” mode.

Due to the modular design of the aqvapos platform, is it possible to combine two or more steam generators in order to reach a greater steam output volume or a higher degree of operational safety.

Aqvapos systems are suitable for moving from one steam consumer to another. The chassis can be equipped with high quality casters.

Technical Data

  working pressure 0 - 4 bar  working pressure 0 - 9 bar working pressure 0 - 12 bar
Typ MM5-60/4 MM5-70/4 MM5-80/4 MM5-60/9 MM5-70/9 MM5-80/9 MM5-60/13 MM5-70/13 MM5-80/13
Steam capacity 84 kg/h 98 kg/h 112 kg/h 84 kg/h 98 kg/h 112 kg/h 84 kg/h 98 kg/h 112 kg/h
maximum operating temperature 151,8 °C 179,9 °C 191,6 °C
Max. operating pressure 0 - 4 bar 0 - 9 bar 0 - 12 bar
Max. operating over pressure 5 bar  10 bar  13 bar
Boiler heating 60kW 70kW 80kW  60kW  70kW  80kW  60kW  70kW  80kW
Input voltage 400 V - 3PH 50 Hz  400 V - 3PH 50 Hz  400 V - 3PH 50 Hz
Protection 100A 125A 125A  100A  125A  125A  100A  125A  125A
Dimensions steam generator 1040 mm x 570 mm x 975 mm 1040 mm x 570 mm x 975 mm 1040 mm x 570 mm x 975 mm

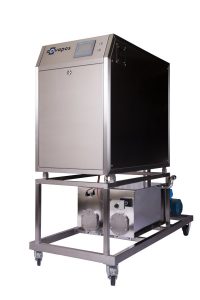

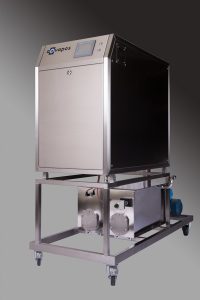

Steam generator aqvapos MM5 with chassis, feed water tank and pump drainage tank and automatic blow-down system
