Aqvapos steam generators are produced in Germany. They are modular designed from stainless steel to be customizable to ever changing demands. Our steam generators are self-regulated and operate in a fully automatic mode.

A specific computer controlled system monitors all relevant parameters such as water level, temperature and pressure to ensure a precise, smooth and reliable operation.

Characteristics such as high energy efficiency of approx. 98%, low operation costs, ease of use and maintenance are the result of a long and meticulous development process carried out by our qualified engineers that offer more than 20 years of experience in construction and production of electrically powered steam generators.

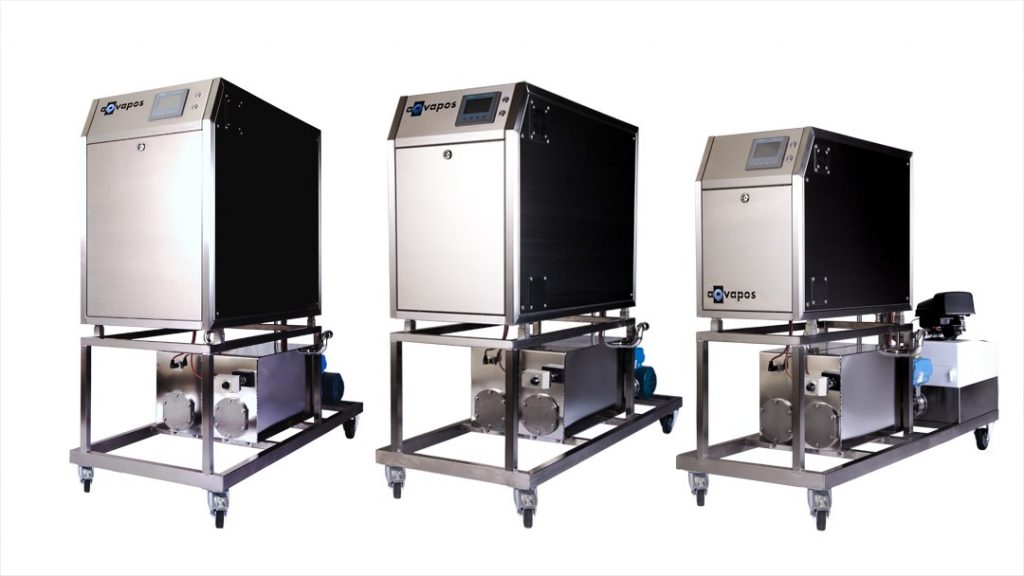

We offer three types of steam generators with an operating pressure between 0 and 12 bar varying in the maximum steam capacity per module of 28, 63 and 112 kg/h of saturated steam as end product. Higher capacity may be achieved by combining two ore more steam generators. An additional advantage of such multi-modular is a high degree of operational safety.

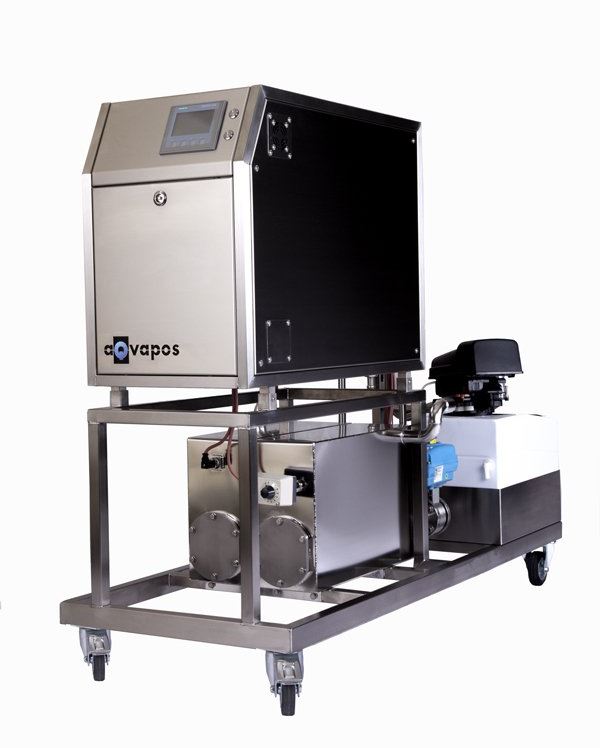

aqvapos MM3

up to 28 kg/h of saturated steam per steam module

Technical data aqvapos MM3

	working pressure 0 - 4 bar			working pressure 0 - 9 bar			working pressure 0 - 12 bar
Type	MM3-10/4	MM3-15/4	MM3-20/4	MM3-10/9	MM3-15/9	MM3-20/9	MM3-10/13	MM3-15/13	MM3-20/13
Steam capacity	14 kg/h	21 kg/h	28 kg/h	14 kg/h	21 kg/h	28 kg/h	14 kg/h	21 kg/h	28 kg/h
maximum operating temperature	151,8 °C			179,9 °C			191,6 °C
Max. operating pressure	0 - 4 bar			0 - 9 bar			0 - 12 bar
Max. operating over pressure	5 bar			10 bar			13 bar
Boiler heating	10kW	15kW	20kW	10kW	15kW	20kW	10kW	15kW	20kW
Input voltage	400 V - 3PH 50 Hz			400 V - 3PH 50 Hz			400 V - 3PH 50 Hz
Protection	16A	25A	32A	16A	25A	32A	16A	25A	32A
Dimensions steam generator	811,5 mm x 420 mm x 725 mm			811,5 mm x 420 mm x 725 mm			811,5 mm x 420 mm x 725 mm

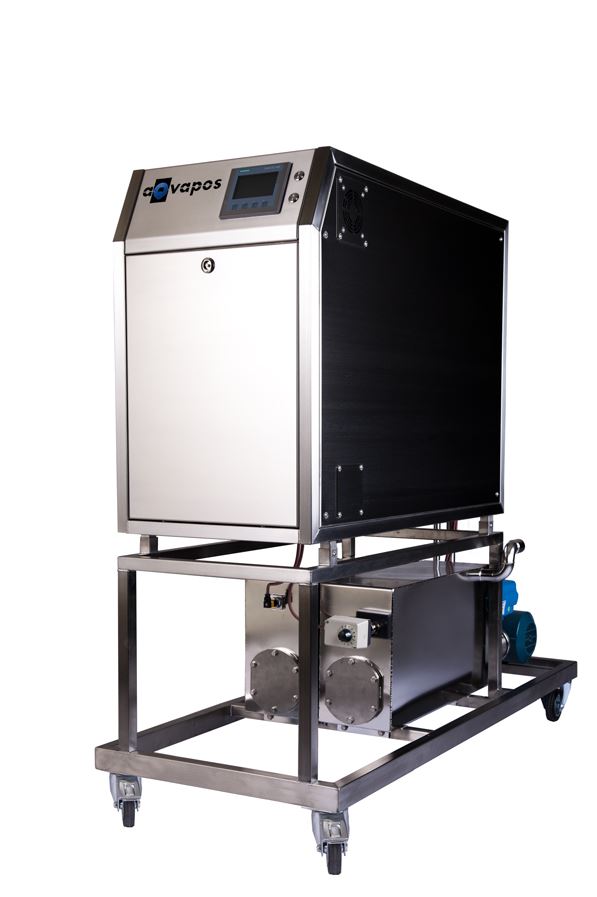

aqvapos MM4

up to 63 kg/h of saturated steam per steam module

Technical data aqvapos MM4

	working pressure 0 - 4 bar			working pressure 0 - 9 bar			working pressure 0 - 12 bar
Type	MM4-30/4	MM4-40/4	MM4-45/4	MM4-30/9	MM4-40/9	MM4-45/9	MM4-30/13	MM4-40/13	MM4-45/13
Steam capacity	42 kg/h	56 kg/h	63 kg/h	42 kg/h	56 kg/h	63 kg/h	42 kg/h	56 kg/h	63 kg/h
maximum operating temperature	151,8 °C			179,9 °C			191,6 °C
Max. operating pressure	0 - 4 bar			0 - 9 bar			0 - 12 bar
Max. operating over pressure	5 bar			10 bar			13 bar
Boiler heating	30kW	40kW	45kW	30kW	40kW	45kW	30kW	40kW	45kW
Input voltage	400 V - 3PH 50 Hz			400 V - 3PH 50 Hz			400 V - 3PH 50 Hz
Protection	50A	63A	80A	50A	63A	80A	50A	63A	80A
Dimensions steam generator	1040 mm x 490 mm x 884 mm			1040 mm x 490 mm x 884 mm			1040 mm x 490 mm x 884 mm

aqvapos MM5

up to 112 kg/h of saturated steam per steam module

Technical data aqvapos MM5

	working pressure 0 - 4 bar			working pressure 0 - 9 bar			working pressure 0 - 12 bar
Type	MM5-60/4	MM5-70/4	MM5-80/4	MM5-60/9	MM5-70/9	MM5-80/9	MM5-60/13	MM5-70/13	MM5-80/13
Steam capacity	84 kg/h	98 kg/h	112 kg/h	84 kg/h	98 kg/h	112 kg/h	84 kg/h	98 kg/h	112 kg/h
maximum operating temperature	151,8 °C			179,9 °C			191,6 °C
Max. operating pressure	0 - 4 bar			0 - 9 bar			0 - 12 bar
Max. operating over pressure	5 bar			10 bar			13 bar
Boiler heating	60kW	70kW	80kW	60kW	70kW	80kW	60kW	70kW	80kW
Input voltage	400 V - 3PH 50 Hz			400 V - 3PH 50 Hz			400 V - 3PH 50 Hz
Protection	100A	125A	125A	100A	125A	125A	100A	125A	125A
Dimensions steam generator	1040 mm x 570 mm x 975 mm			1040 mm x 570 mm x 975 mm			1040 mm x 570 mm x 975 mm

Additional modules - optionally available

Additional modules / options
