Steam Generator aqvapos MM4

The aqvapos MM4 provides up to 63 kg/h of saturated steam with an operating pressure between 0 and 12 bar and a standard control accuracy of +0,02 bar or +- 0,02 bar in the “High Precision” mode.

Due to the modular design of the aqvapos platform, is it possible to combine two or more steam generators in order to reach a greater steam output volume or a higher degree of operational safety.

Aqvapos systems are suitable for moving from one steam consumer to another. The chassis can be equipped with high quality casters.

Technical Data

  working pressure 0 - 4 bar  working pressure 0 - 9 bar working pressure 0 - 12 bar
Typ MM4-30/4 MM4-40/4 MM4-45/4 MM4-30/9 MM4-40/9 MM4-45/9 MM4-30/13 MM4-40/13 MM4-45/13
Steam capacity 42 kg/h 56 kg/h 63 kg/h 42 kg/h 56 kg/h 63 kg/h 42 kg/h 56 kg/h 63 kg/h
maximum operating temperature 151,8 °C 179,9 °C 191,6 °C
Max. operating pressure 0 - 4 bar 0 - 9 bar 0 - 12 bar
Max. operating over pressure 5 bar  10 bar  13 bar
Boiler heating 30kW 40kW 45kW  30kW  40kW  45kW  30kW  40kW  45kW
Input voltage 400 V - 3PH 50 Hz  400 V - 3PH 50 Hz  400 V - 3PH 50 Hz
Protection 50A 63A 80A  50A  63A  80A  50A  63A  80A
Dimensions steam generator 1040 mm x 490 mm x 884 mm 1040 mm x 490 mm x 884 mm 1040 mm x 490 mm x 884 mm

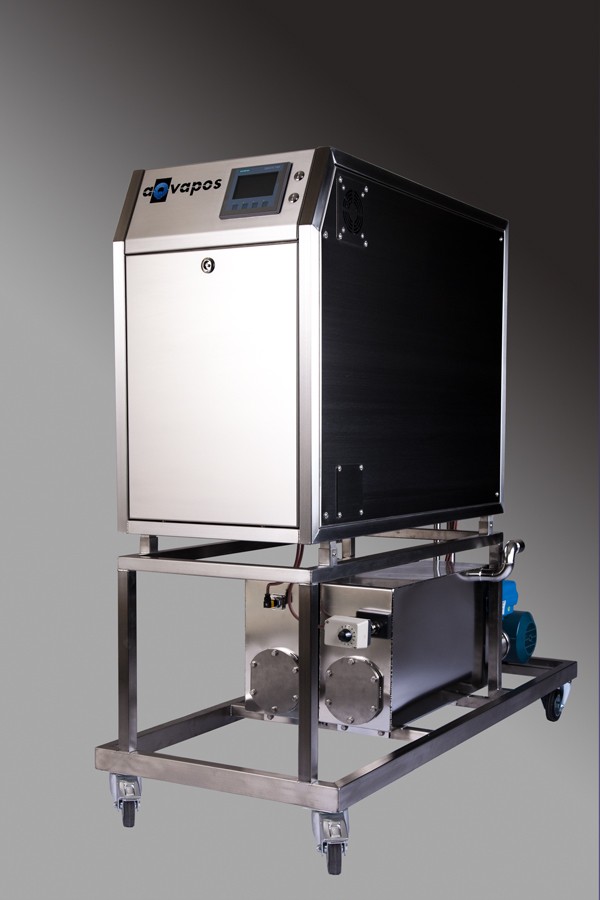

Steam generator aqvapos MM4 with chassis, feed water tank and pump drainage tank and automatic blow-down system
