Steam Generator aqvapos MM3

The aqvapos MM3 provides up to 28 kg/h of saturated steam with an operating pressure between 0 and 12 bar and a standard control accuracy of +0,02 bar or +- 0,02 bar in the “High Precision” mode.

Due to the modular design of the aqvapos platform, is it possible to combine two or more steam generators in order to reach a greater steam output volume or a higher degree of operational safety.

Aqvapos systems are suitable for moving from one steam consumer to another. The chassis can be equipped with high quality casters.

Technical Data

  working pressure 0 - 4 bar working pressure 0 - 9 bar working pressure 0 - 12 bar
Typ MM3-10/4 MM3-15/4 MM3-20/4 MM3-10/9 MM3-15/9 MM3-20/9 MM3-10/13 MM3-15/13 MM3-20/13
Steam capacity 14 kg/h 21 kg/h 28 kg/h 14 kg/h 21 kg/h 28 kg/h  14 kg/h 21 kg/h  28 kg/h
maximum operating temperature 151,8 °C 179,9 °C 191,6 °C
Max. operating pressure 0 - 4 bar 0 - 9 bar 0 - 12 bar
Max. operating over pressure 5 bar  10 bar  13 bar
Boiler heating 10kW 15kW 20kW  10kW  15kW  20kW  10kW  15kW  20kW
Input voltage 400 V - 3PH 50 Hz  400 V - 3PH 50 Hz  400 V - 3PH 50 Hz
Protection 16A 25A 32A  16A  25A  32A  16A  25A  32A
Dimensions steam generator 811,5 mm x 420 mm x 725 mm  811,5 mm x 420 mm x 725 mm  811,5 mm x 420 mm x 725 mm

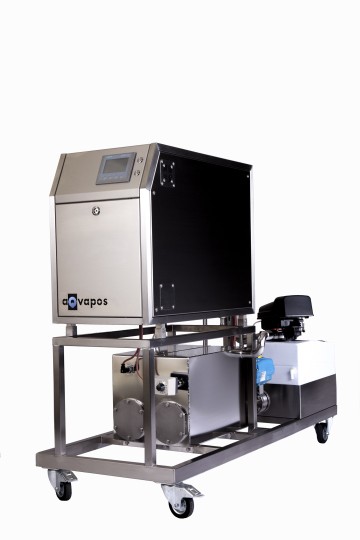

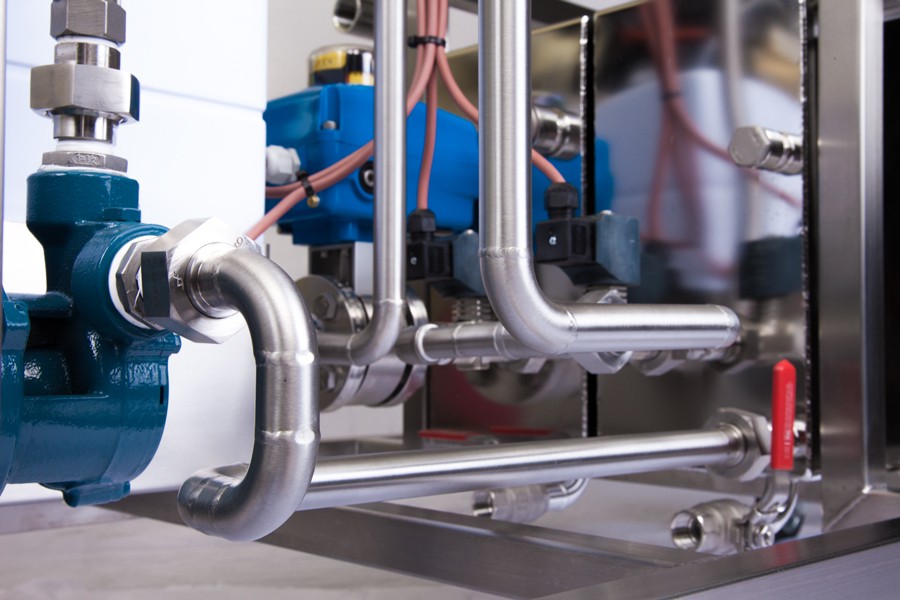

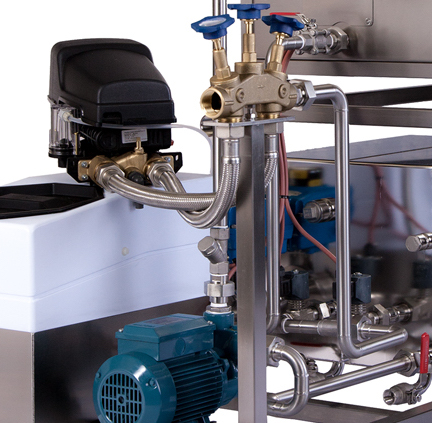

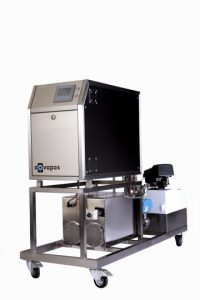

Image series: aqvapos steam generator MM3 with chassis, water softening system, feed water tank and pump drainage tank and automatic blow-down system
